商品の詳細:
お支払配送条件:
|
繊維のコネクター: | FC | フェルールタイプ: | 陶磁器ジルコニア |
---|---|---|---|
コンネクタ 性別: | 変数 | 移動モード: | シングルモード |
減衰: | 1~30dB | 作動の波長(nm): | 1260~1620 (SM) |
減少の正確さ: | ±0.8db | 挿入損失を最小限に抑える: | <2.5dB |
分極の依存した損失: | ≤0.2dB | 最高の光学入力パワー: | 200mw |
湿度: | 95%RH | 温度: | -40〜80°C (-40〜176°F) 保存 -40〜85°C (-40〜185°F) |
ハイライト: | 30dBの単モード減衰装置,1620nm シングルモードアテンチュエータ |

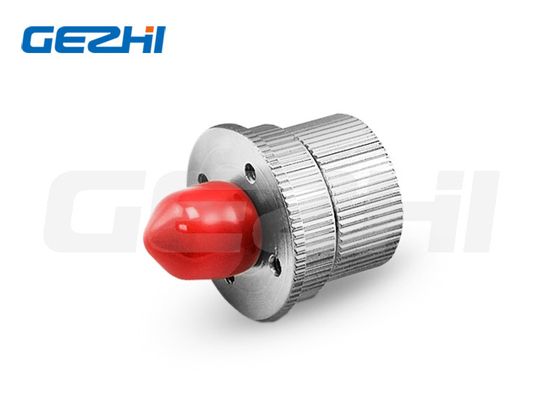

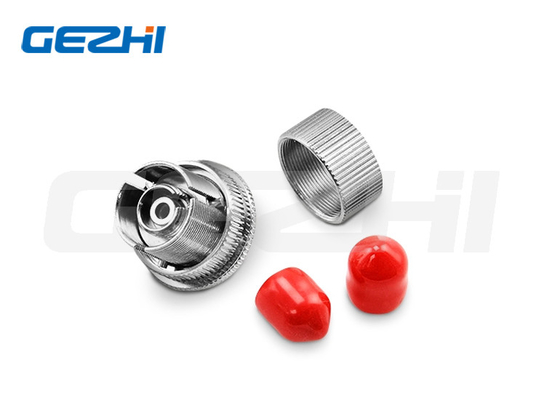

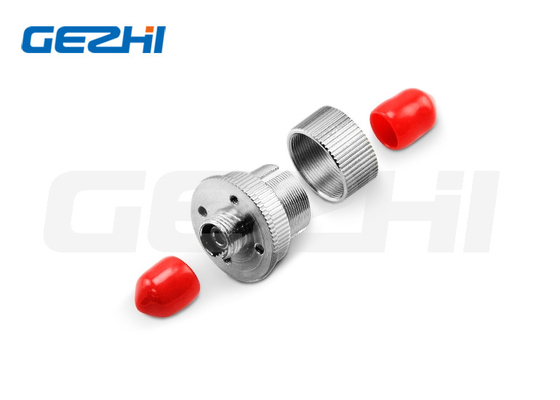

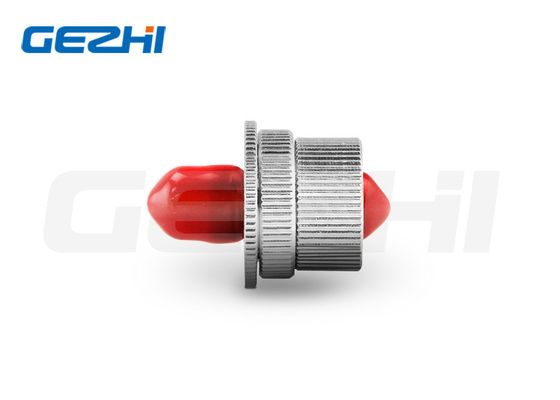

1~30dB FC/UPC/APCタイプ 1260〜1620nm 波長 シングルモードアテンチュエーター 変形光ファイバーアテンチュエーター
製品説明
光学パッシブデバイスとして,ゲジフォトニクス株式会社, Ltd attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
特徴
FC型 変形光ファイバーアテンチュエータ
光学減光器は,挿入損失が低く,PDLが低く,1dBから30dBまでの広い減光範囲,高い安定性,高い信頼性があります.
適用する
光学減光器は,光ファイバー通信システムと光伝送システムで使用できます. FTTH,CATV,WAN,光ファイバーセンサー都市圏ネットワークに適用できます.試験装置として使用する.
